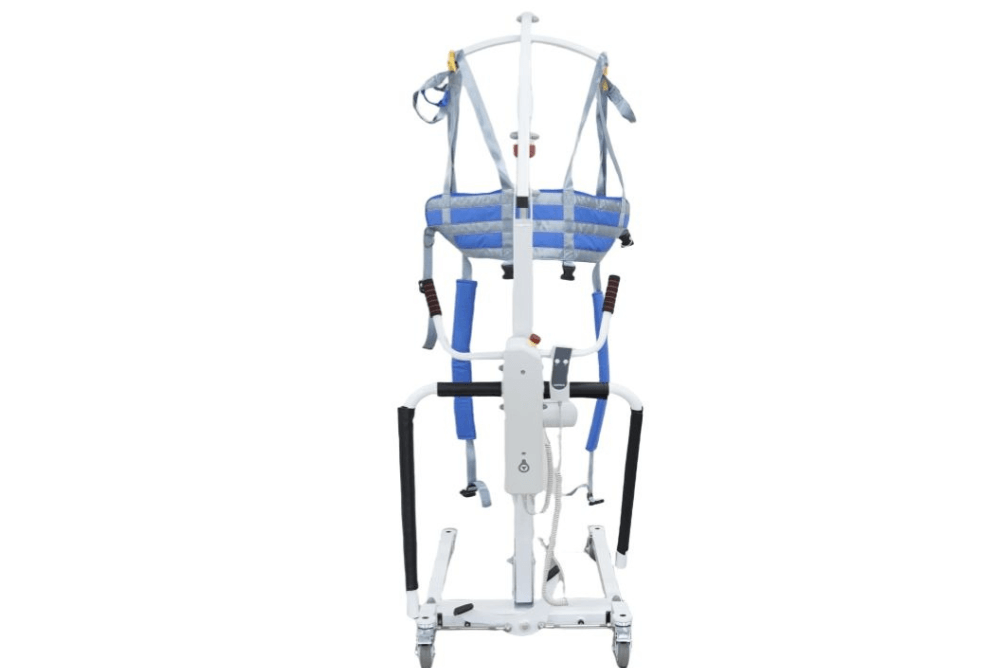

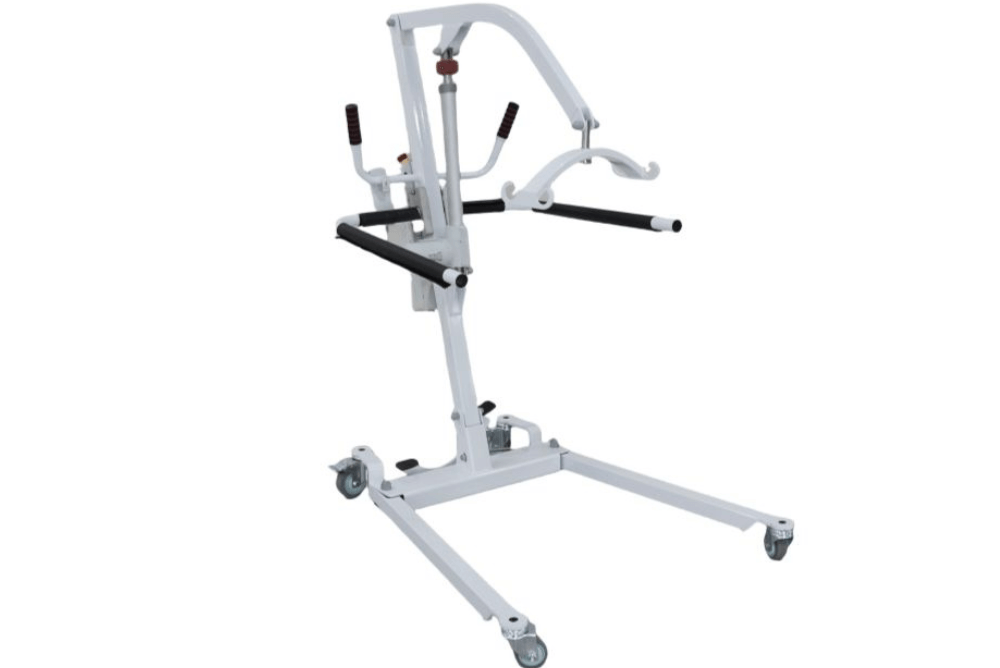

Electric Patient Lift for Walking and Lift transfer WY-220

Send Inquiry

Request To Call Back

Electric Patient Lift for Walking and Lift transfer WY-220

Name: Electric Patient Lift for Walking and Lift transfer WY-220
Brand: GVS ENTERPRISES PVT. LTD.
Price: 63000 INR
Availability: InStock

Price 63000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electric Patient Lift for Walking and Lift transfer WY-220 Specification

Application
Patient Walking Training, Patient Transfer, Rehabilitation Centers, Hospitals, Nursing Homes

Dimension (L*W*H)
1280 x 640 x 2030 mm

Frequency
50/60 Hz

Function
Lift, Transfer, and Assist in Ambulation

Power
AC100-240V/50/60Hz

Shape
Rectangular Frame with Wheeled Base

Treatment Type
Physical Assistance, Rehabilitation

Product Type
patient lift

Automation Grade
Automatic with Manual Emergency Control

Weight
45 Kilograms (kg)

Color Code
White/Blue

Humidity Range
10% - 90% (non-condensing)

Height
Adjustable Lifting Height: up to 1750 mm

Material
Steel Frame with Powder Coating

Properties
Height Adjustable, Powered Lifting, Support for Standing and Walking

Temperature Range
-10C to 40C Operating Temperature

Use
Assisting Patients in Transferring and Walking

Phase
Single Phase

Suitable For
Adults, Elderly, Physically Challenged Patients

Power Source
Rechargeable Battery or AC Adapter

Voltage
24V Volt (v)

Battery Type
Sealed Lead Acid Battery

Chassis Opening Width
Motorized or Manual for Wider Access

Armrest Adjustability
Yes, Adjustable Width and Height

Emergency Lowering Function
Available

Hand Control
Remote Handset for Lifting Operation

Maximum Load Capacity
220 kg

Safety Features
Anti-Tip Design, Emergency Stop Switch

Caster Type
Swivel Castors with Locking Mechanism

Operating Noise Level
55 dB(A)

Electric Patient Lift for Walking and Lift transfer WY-220 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Electric Patient Lift for Walking and Lift transfer WY-220

The Electric Patient Lift is designed for easy folding and storage when not in use.It is a multi-functional mobile lifting device, not only electric lifting, and foot width adjustment.Some of the most commonly used situations are movement between bed and wheelchair, moving from bathroom to bathroom, standing up or squatting down from the ground.

Specifications:

Model	WY-220
Base length	1070mm
Leg spread width	920mm
Speed up and down	3-9mm/s
Overall width	630mm
Lifting range	750mm-1750mm
Maximum load	180kg
Input power	AC100-240V/50/60Hz
Noise	Less than 65dB(A)
Motor	24V/8000N
Net weight	45kg

Versatile Patient Mobility Solution

The WY-220 Electric Patient Lift offers a supportive and adaptable solution for assisting patients in walking, transferring, or rehabilitation training. Its sturdy, powder-coated steel frame and dual power options (battery or AC) ensure reliable, long-lasting performance, while its adjustable height and width accommodate various patient and facility needs.

Enhanced Safety and Convenience Features

Safety is a priority with the WY-220. It has an anti-tip chassis, emergency stop switch, and emergency lowering function. Lockable swivel castors provide secure, stable movement, and a remote control handset streamlines operation for caregivers. The lift maintains a low noise level (55 dB(A)), ensuring comfort for both patients and operators.

FAQ's of Electric Patient Lift for Walking and Lift transfer WY-220:

Q: How does the WY-220 lift ensure patient safety during transfers?

A: The WY-220 features an anti-tip design, lockable swivel castors, emergency stop switch, and an emergency lowering function. These features work together to minimize risks and provide a secure lifting experience for both caregivers and patients.

Q: What are the main benefits of using this electric patient lift for walking and transfers?

A: The lift supports adults, elderly, and physically challenged individuals by facilitating safe walking, transfer, and standing exercises. Its powered lifting, adjustable height, and width help prevent caregiver injuries while promoting patient rehabilitation and independence.

Q: Where can the WY-220 patient lift be used effectively?

A: This equipment is suitable for hospitals, rehabilitation centers, nursing homes, and home care environments in India. It adapts easily to different settings due to its adjustable and motorized features.

Q: What is the process for operating and adjusting the lift?

A: Caregivers can operate the lift using a remote handset to control lifting and lowering. The chassis width and lifting height can be adjusted either manually or motorized, depending on the model. Emergency controls ensure patient safety during unexpected situations.

Q: When should the emergency lowering function be used?

A: The emergency lowering function is designed for use during power failures or unexpected issues, allowing caregivers to safely lower the patient to a secure position manually or via backup systems.

Q: How is the device powered and what is the battery requirement?

A: The lift operates on a rechargeable sealed lead acid battery or AC adapter, with compatibility for 100-240V power and 50/60Hz frequency. This ensures flexible operation in various facility infrastructures.

Q: What applications and patient conditions is the WY-220 suitable for?

A: It is ideal for patient walking training, assisted transfer, and rehabilitation. It provides essential physical assistance to adults, the elderly, and those with mobility challenges, supporting both short-term and long-term care.
