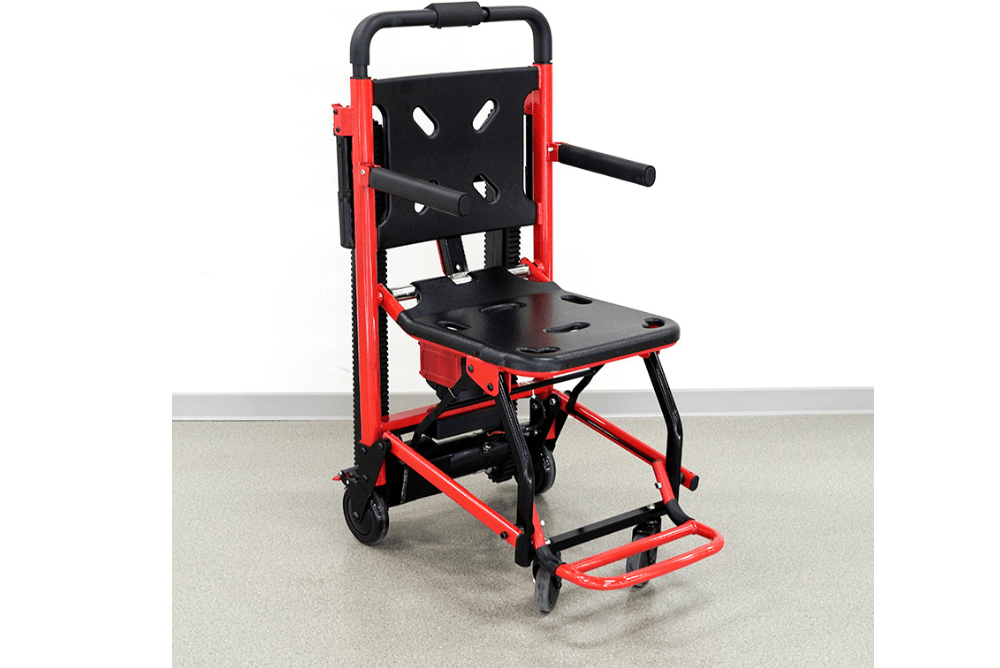

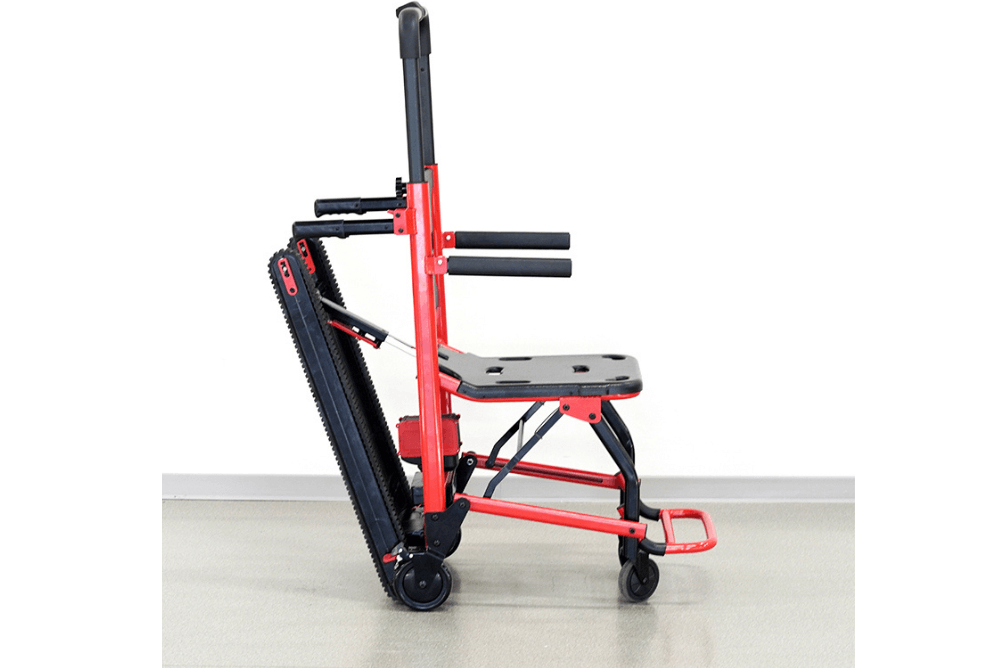

Stair Climbing Power Wheelchair WY-236

Name: Stair Climbing Power Wheelchair WY-236
Brand: GVS ENTERPRISES PVT. LTD.
Price: 81700 INR
Availability: InStock

Price 81700 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stair Climbing Power Wheelchair WY-236 Specification

Type
Stair Climbing Power Wheelchair

Material
Aluminum Alloy Frame

Portable
Yes

Foldable
Yes

Adjustable
Yes

Supporting Belt
Yes

Supporting Belt Type
Adjustable Safety Belt

Armrest
Padded, Flip-up

Foot Rest
Foldable

Foot Rest Material
Aluminum Alloy

Frame Finish
Powder Coated

Seat & Back Material
Nylon Upholstery

Castor Type
PU Castor

Rear Wheel Diameter
12 inches

Rear Wheel Specification
PU Solid, Anti-Skid

Front Wheel Diameter
10 inches

External Width
55 cm

Internal Seat Width
45 cm

Height
110 cm

Backrest Height
49 cm

Brake
Electromagnetic Brake System

Brace
Reinforced Steel Support

Driven Mode
Electric Motor

Battery Life
Up to 20 km per charge

Weight
38 kg

Accessories
Charger, Headrest, Tool Kit

Maximum Climbing Angle
35 degrees

Power Supply
24V Lithium Battery

Charging Time
5-7 hours

Waterproof Level
IPX3

Control System
Joystick Controller

Maximum Load Capacity
160 kg

Seat Depth
43 cm

Motor Power
250W x 2

Speed Range
1 - 6 km/h

Ground Clearance
6.5 cm

Stair Climbing Power Wheelchair WY-236 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Stair Climbing Power Wheelchair WY-236

11B wheelchair lever adjustment range 450mm

The size of the 11B wheelchair stair turntable is 900mm x 900mm

The maximum Angle of stairs should be 35

11B wheelchair climbing speed 0.17m/s

The effective power supply time of lithium battery is not less than 1.3h.

The maximum load is 150kg.

When unloaded, the total weight should not be greater than 30kg.

The outer dimensions of the 11B wheelchair (L x W x H, mm) are 1040 x 520 x 1750, 30 mm.

Main structural composition

The product is mainly composed of a starting switch, retractable pole, battery, controller, track, cushion, backrest, motor, wheels, straps and armrests. The wheelchair is made of high-strength aluminum alloy.

Warranty: One year service warranty on motors

Engineered for Challenging Terrains

The WY-236 boasts reinforced steel support and a powerful dual-motor drive, enabling users to climb stairs with confidence. Aluminum alloy framing and solid, anti-skid PU wheels further enhance stability and safety on uneven surfaces or inclines up to 35 degrees.

Comprehensive Comfort and Safety Features

Designed with an adjustable safety belt, padded flip-up armrests, and durable nylon upholstery, this wheelchair prioritizes user comfort. The foldable footrest, headrest, and ergonomic seat design provide additional support during extended use, while the electromagnetic brake system ensures reliable control.

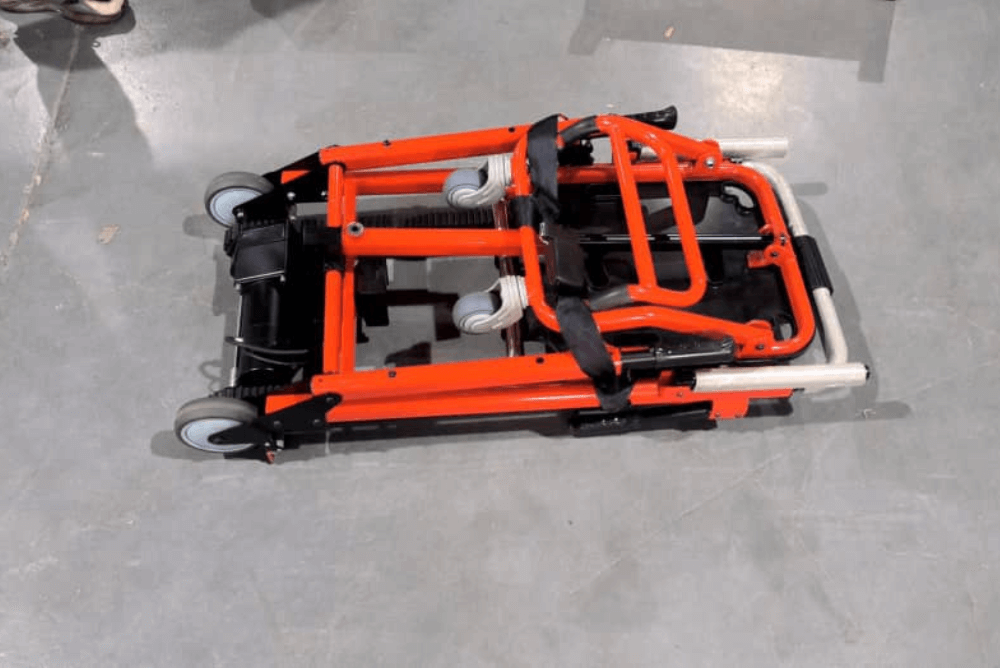

Convenient Mobility and Easy Storage

With its lightweight, foldable frame weighing only 38 kg, the WY-236 is highly portable and easy to transport. The simple folding mechanism allows for hassle-free storage in vehicles or confined spaces, making the wheelchair ideal for both daily activities and travel.

FAQ's of Stair Climbing Power Wheelchair WY-236:

Q: How does the WY-236 Stair Climbing Power Wheelchair manage different types of stairs?

A: This wheelchair is equipped with a dual 250W motor system and reinforced steel support, allowing it to climb stairs at angles up to 35 degrees efficiently. Its anti-skid, solid PU wheels, and electromagnetic brakes provide added traction and stability, making it suitable for various stair surfaces.

Q: What is the maximum weight capacity and seat size of the WY-236 wheelchair?

A: The WY-236 can safely support a maximum load of 160 kg. The seat offers an internal width of 45 cm and a depth of 43 cm, accommodating a range of users comfortably.

Q: When should I recharge the wheelchair, and how long does it take to charge fully?

A: It's recommended to recharge the WY-236 after each use or when the battery indicator shows low power. Charging takes approximately 5 to 7 hours, using the included charger and the 24V lithium battery.

Q: Where can I use the Stair Climbing Power Wheelchair WY-236?

A: Designed for both indoor and outdoor use, this wheelchair handles smooth surfaces, uneven terrain, and most staircases effectively. Its compact, foldable design also facilitates easy transport and use in various settings.

Q: What is the process for folding and transporting the WY-236 wheelchair?

A: Folding the chair is straightforward-simply activate the folding mechanism to collapse the frame. Weighing 38 kg and equipped with a portable design, it can be stored in car trunks or carried with minimal effort.

Q: How is user safety ensured during stair climbing and regular movement?

A: The WY-236 features an adjustable safety belt, electromagnetic braking system, and anti-skid wheels. These, together with reinforced steel supports and padded, ergonomic features, guard against slips and enhance user confidence in diverse conditions.

Q: What are the main benefits of choosing the WY-236 for mobility needs?

A: Users benefit from advanced stair-climbing capabilities, a generous load capacity, comfortable adjustable seating, reliable battery life, and a foldable, portable structure. Its robust feature set makes it a practical choice for challenging mobility requirements.
