Reclining Wheelchair Electrical

Reclining Wheelchair Electrical

Product Details:


Reclining Wheelchair Electrical Price And Quantity

  • 1 Number

Reclining Wheelchair Electrical Trade Information

  • 100 Number Per Day
  • 7 Days

Product Description

At some point of time you need to relax with out any ones help, and while watching TV you want to lay down on your back with out moving your legs,  with Reclining Electric Wheelchair you can go out door parties to indoor use.

Technical Specification

Frame Material

Stainless Steel

Maximum Speed


Net Weight



24V 20AH Li-Battery

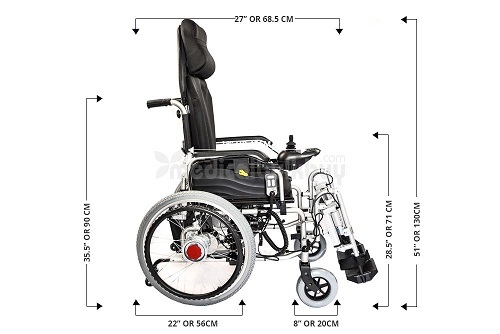

Overall size107-68.5-123 cmFolded size77.5x38x76 cm
Seat size45-43 cmNet weight49/54 kgs
Height between
seat and footplate
54/51.5/49.5 cmHeight between
footplate and ground
10/6.5/5 cm
Armrest height23 cmBackrest height39.5 cm
Max loading weight100 kgsFront wheel diameter20.32 cm
Rear wheel diameter55.88 cmBattery (*1 pcs)12 V 12 AH/20 AH
Motor (*2 pcs)250 WBattery charger

AC 220 (110 V)+/-10%

50-60 Hz

Control35 AMax driving
20 km
Degree of
IPX3Max safe slope6
Turning radius1.2 mStatic stability9
Reversing width1.4mClimbing angle6
Tyre pressure2 Kgf/m2Obstacle climbing4 cm
Ground clearance10 cmHeight between seat and ground51 cm

Product Performance
This series of Reclining electric wheelchair are powered by battery , driven by DC Motor. Users control direction and adjust speed by joystick control. It is suitable for application of low speed , good road condition and small slope.

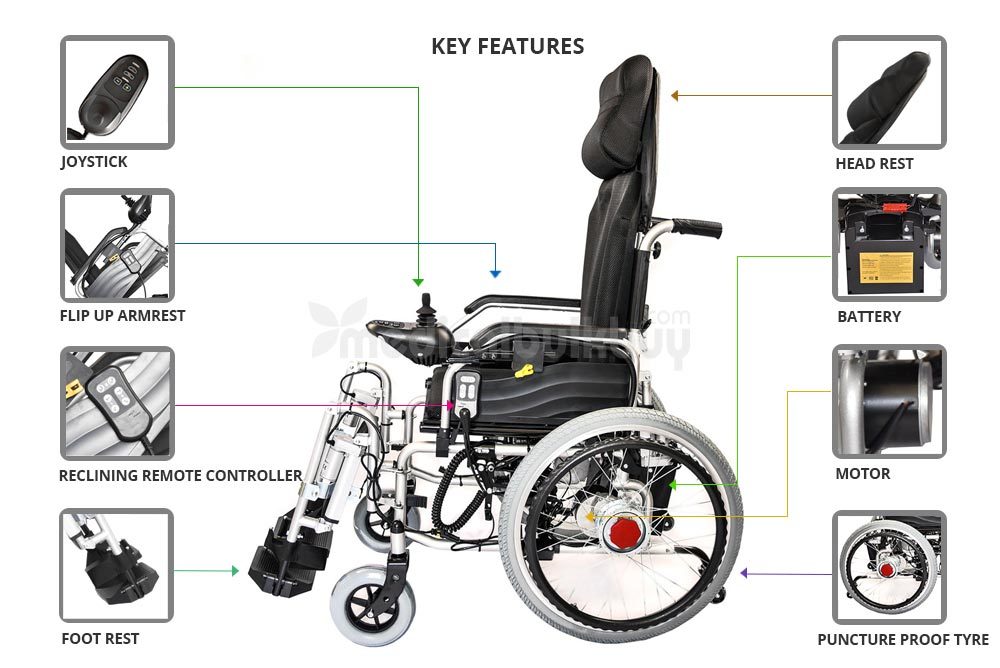

Reclining electric wheelchair Main Structure
This series of electric wheelchairs are mainly composed of two parts:

  • Frame Part: frame, wheel, footrest, armrest, backrest etc.
  • Electrical Part: control, motor, battery.

Application Range
Our Reclining electric wheelchair is for disabled and elderly people (less than 100 kg)using as walking vehicle, suitable for outdoor middle  distance use. Do not run on the motorways.

Safety Instructions

General Driving Cautions:

  • Please keep your hands on the armrest to control the wheelchair.
  • Please practice in parks or other safe open places until you can use the wheelchair skillfully.
  • Fully practice driving in a safe place, to master principle of moving forward, stopping and turning circles.
  • Before driving to the road, please be accompanied by caregivers and confirm it is safe.
  • Please strictly follow traffic rules of the pedestrian, do not regard yourself as vehicle driver.
  • Please drive on the sidewalk and the zebra crossing. Do not drive on vehicle lane.
  • Steadily drive, to avoid driving in line or sharp turn.
  • Please keep pressure of pneumatic tire properly, the abnormal tire pressure may cause unsteady driving or excessive lost of current.

Accompanied by Caregivers or Avoid Driving in These Conditions

  • Drive in bad weather, such as rainy day, heavy fog, strong wind, snow, etc.
  • In case of wheelchair is wet out, wipe the water immediately.
  • Drive on the bad road condition, such as muddy, trail, sand road etc.
  • Drive on crowed road.
  • Drive on no fence side ditch, pond, etc.
  • Across the railway.
  • When you have to across railway, pause at turnoff to confirm it is safe, and make sure that the tires will not be  stuck by railway.
  • The electric wheelchair is only for personal use, do not carry people or goods, and do not for a traction purposes.

Precautions for Uphill and Downhill

    • Avoid driving on following places: steep hills, tilt places, high steps, channels etc.
    • Avoid driving on steep slopes, the slope range should be less than 9 degrees. Please carefully operate the control when drive on slopes.
    • Keep moving forward during uphill or downhill.
    • Slow down speed during downhill.
    • Avoid driving sideways on the steep.
    • Forbid driving on the stairs place and avoid crossing high steps.
    • Avoid crossing wide ditches.
    • During crossing ditches, keep 90 angel between tires and the ditches.
