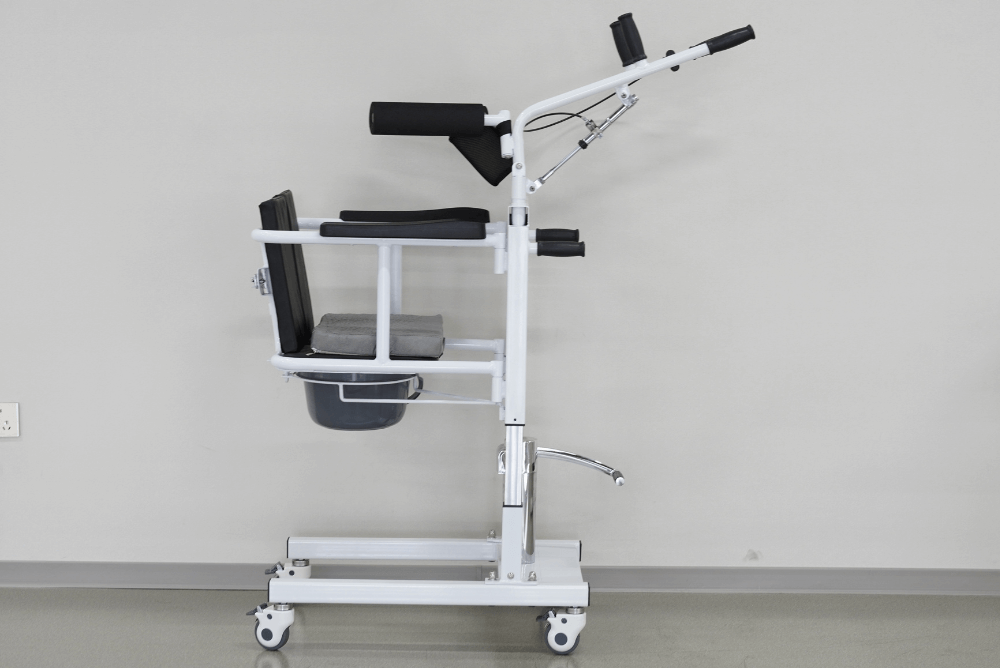

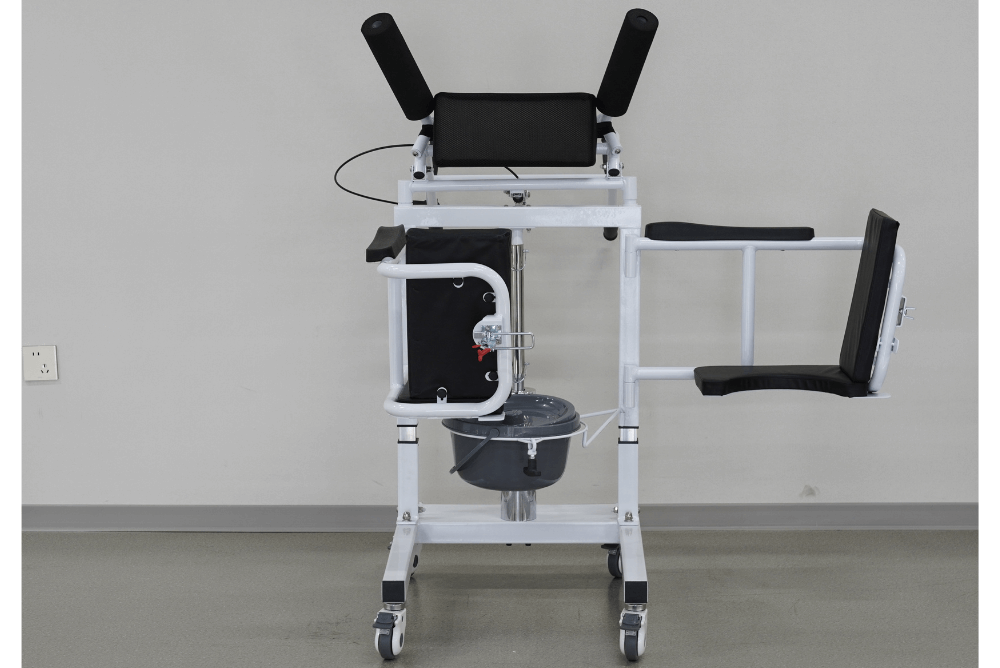

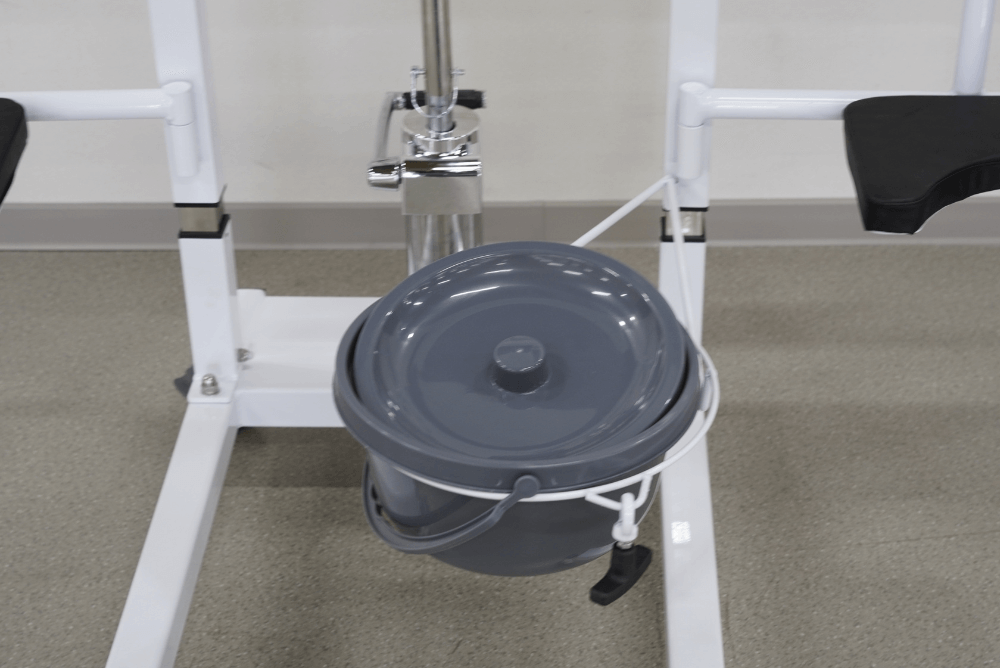

Patient Transfer Machine WY-203

Name: Patient Transfer Machine WY-203
Brand: GVS ENTERPRISES PVT. LTD.
Price: 22440 INR
Availability: InStock

Price 22440 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Patient Transfer Machine WY-203 Specification

Material
Mild Steel

Application
Hospital, Clinic, Patient Room

Shape
Rectangular

Weight
120 kg

Use
Patient transfer from bed to stretcher

Frequency
50 Hz

Color Code
White and Blue

Treatment Type
Patient mobility assistance

Function
Safe and smooth patient transfer

Product Type
Patient Transfer Machine

Phase
Single Phase

Dimension (L*W*H)
2000 x 760 x 400-900 mm

Suitable For
Adult Patients

Automation Grade
Semi-Automatic

Power
Electric motor powered

Height
400-900 mm adjustable

Properties
Electric adjustable height, Comfortable handrails, Locking castor wheels

Power Source
AC Power

Voltage
220V

Mattress Type
Removable, PVC covered

Lifting Time
< 60 seconds full range

Caster Size
125 mm with brake

Control Method
Hand controller

Backrest Adjustment
No

Frame Finish
Powder coated

Number of Wheels
4

Maximum Load Capacity
180 kg

Noise Level
< 60 dB

Patient Transfer Machine WY-203 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Patient Transfer Machine WY-203

1. Product Name: Patient Transfer Machine

2. Model: WY-203

3. Structure and Components: Frame, casters, base legs, lifting rod, controller assembly, armrests.

4. Intended Use: For patient transfer and mobility in medical institutions. Unit: cm Tolerance: +/-10cm

Specifications:

Model	WY-203
Seat Depth	40cm
Seat Width	42cm
Overall Width	58cm
Seat Height	85-105cm

5. Operating Procedures (Transfer):

Seated Transfer:

1.Have the user sit upright. Open the seat and position it in front of the user. Lift the users feet onto the footrest and lock the brake before seating.The parking brake lock is locked before the user sits on the transfer machine

2.Guide the user to lean slightly left/right while rotating the corresponding seat half to allow entry. Close the backrest and lock the automatic latches and safety latches once fully seated.

3.After confirming both backrest latches are locked, release the brake. Move the user using the front handle.

4.Upon reaching the target location, open the dual backrest latches, rotate the seat open, and assist the user in exiting.

Height Adjustment:

1.Loosen the locking lever and adjust the seat height by moving the control handle up/down.

2.Tighten the locking lever once the desired height is achieved.

6. Safety Precautions

1.Before use, ensure all components are complete and secure for safety.

2.Do NOT stand on the footrest during entry/exit; always step on solid ground.

3.Adjust the machine to a suitable height before use.

4.Ensure both seat halves are at the same height before use.

5.Do NOT adjust the height while the user is seated.

6.Lock all wheels during entry/exit.

7.Lock all four wheels when stationary on slopes.

7. Maintenance

1.Regularly inspect and maintain the machine to prevent user injuries.

2.Clean stains with neutral detergent.

3.Periodically check for loose nuts, damaged, or broken parts; replace if necessary.

4.Follow the manual instructions during disassembly to avoid damage.

8. Packaging, Transport, and Storage

1.Packaging: Carton packaging.

2.Transport: Handle with care; avoid inversion and exposure to rain.

3.Storage: Store in a well-ventilated, dry area (humidity 80%) free of corrosive gases.
Return Policy: This Product is Non returnable.

Effortless Patient Mobility

The WY-203 ensures seamless transfers of adult patients from beds to stretchers or other surfaces in clinical environments. Its electric-powered height adjustment and smooth, locking wheels make patient movement easy for caregivers, reducing physical strain and enhancing safety. Its quiet operation and hand-controlled interface ensure patient comfort and convenience with every use.

Designed for Safety and Comfort

Featuring a powder-coated mild steel frame, removable PVC-covered mattress, and comfortable handrails, the WY-203 prioritizes both durability and patient well-being. The locking castor system keeps the machine stable during transfer, ensuring maximum safety and reducing the risk of accidents during operation.

FAQ's of Patient Transfer Machine WY-203:

Q: How does the Patient Transfer Machine WY-203 help in transferring patients safely?

A: The WY-203 is equipped with electric adjustable height and comfortable handrails, allowing caregivers to transfer adult patients efficiently and safely from bed to stretcher. Its stable mild steel frame and locking castor wheels prevent unwanted movement during the transfer process.

Q: What is the maximum weight capacity of this machine, and who is it suitable for?

A: This transfer machine can accommodate patients weighing up to 180 kg. It is specifically designed for the safe transfer of adult patients in hospitals, clinics, and patient rooms.

Q: When is it appropriate to use the WY-203 transfer machine?

A: The WY-203 is ideal for use whenever safe, smooth, and efficient patient mobility assistance is required, such as during patient admissions, internal transfers, or when repositioning patients for medical procedures in healthcare settings.

Q: Where can the WY-203 be effectively used?

A: This machine is suitable for application in hospitals, clinics, and patient rooms-any location that requires reliable patient transportation within a healthcare facility in India.

Q: What is the process of operating the transfer machine?

A: Operation is straightforward: connect the machine to a 220V AC power source, use the hand controller to adjust height (from 400 to 900 mm), and ensure the castor wheels are locked before moving the patient. The removable mattress allows for easy cleaning between uses.

Q: What are the benefits of the removable, PVC-covered mattress?

A: The removable, PVC-covered mattress enhances hygiene, as it can be quickly cleaned or replaced between patient transfers. It also provides comfort and minimizes slipping during movement.

Q: How noisy is the machine during operation?

A: The WY-203 operates at a noise level under 60 dB, which is quieter than typical conversation, ensuring a calm and comfortable environment for both patients and staff.
